32inch Floor Standing Display

Key Feature

Display
Model	EKFAD32
Screen Size	32nch
Resolution	1920×1080
Brightness	500 nits
Contrast Ratio	1200:1
Viewing Angle(H/V)	178°/178°
Backlight Life	30,000 Hrs (Min.)





Internal Player
OS	Android 10
CPU	A133  ARM Cortex-A53 主频1.5GHz
RAM	LPDDR4 2G
ROM	EMMC5.1 32G
Network	Wi-Fi（802.11b/g/n）
I/O Interface	USB2.0X2，LANx1





Power
Power supply	90-240V
Power consumption	≤ 50 W





Environment
Operation temperature	0℃~50℃
Operation humidity	20%~80% RH





Physical
Bezel	/
Body Dimension	42*30*156cm
Set Weight	18.35kg

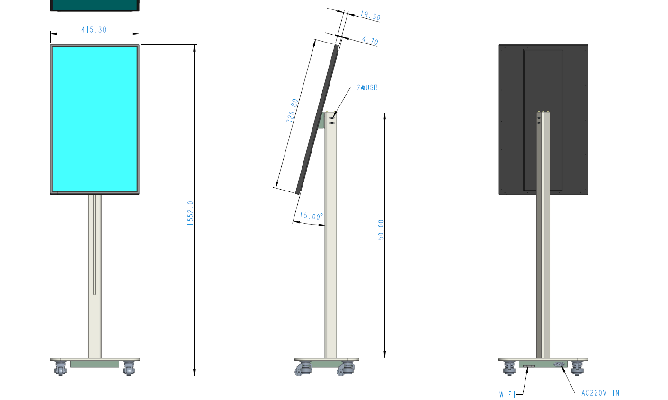

Dimension Drawing (draft)

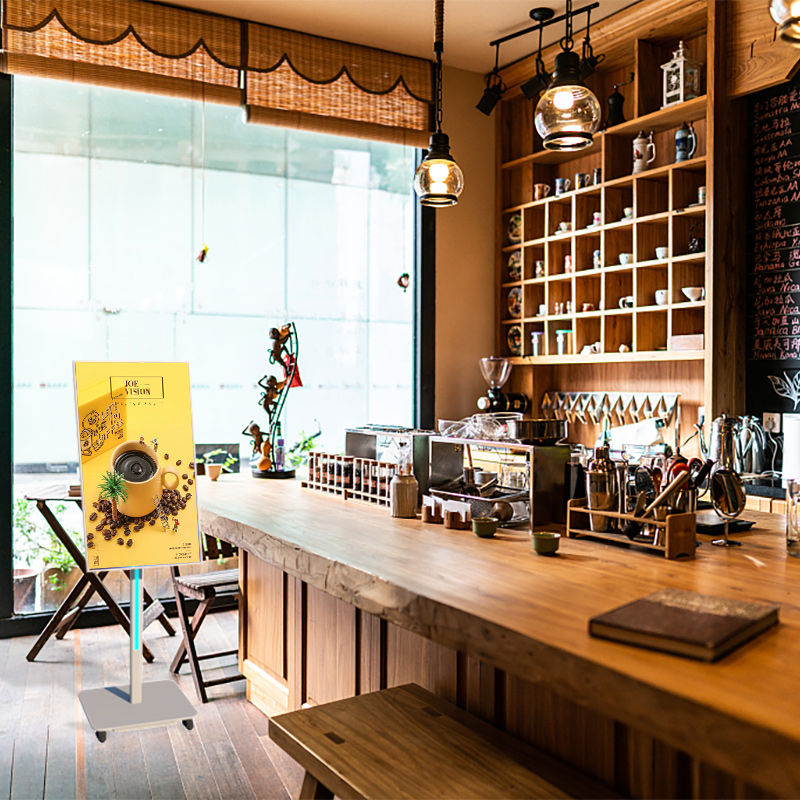

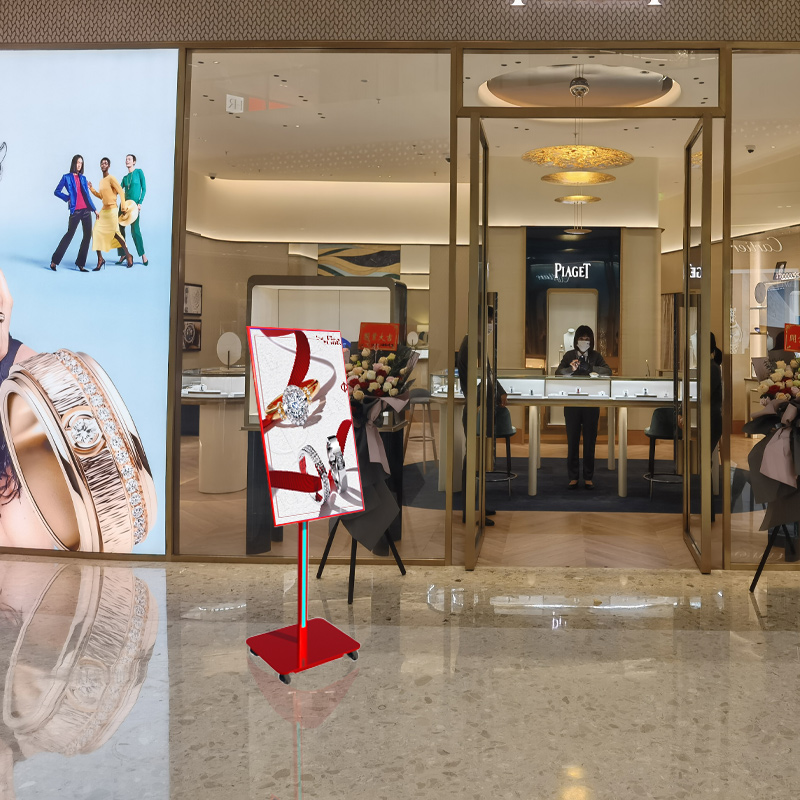

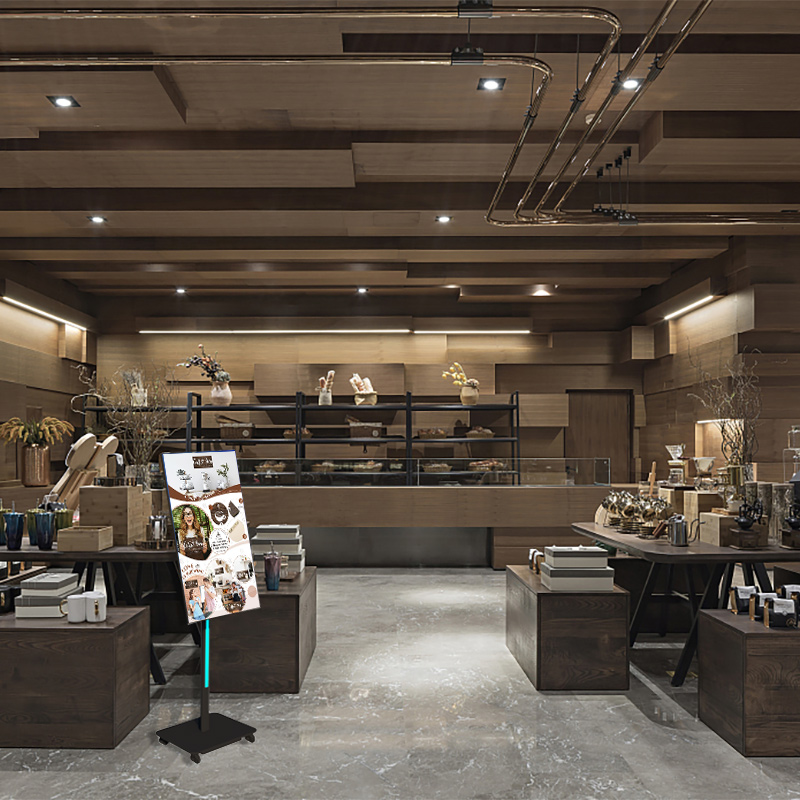

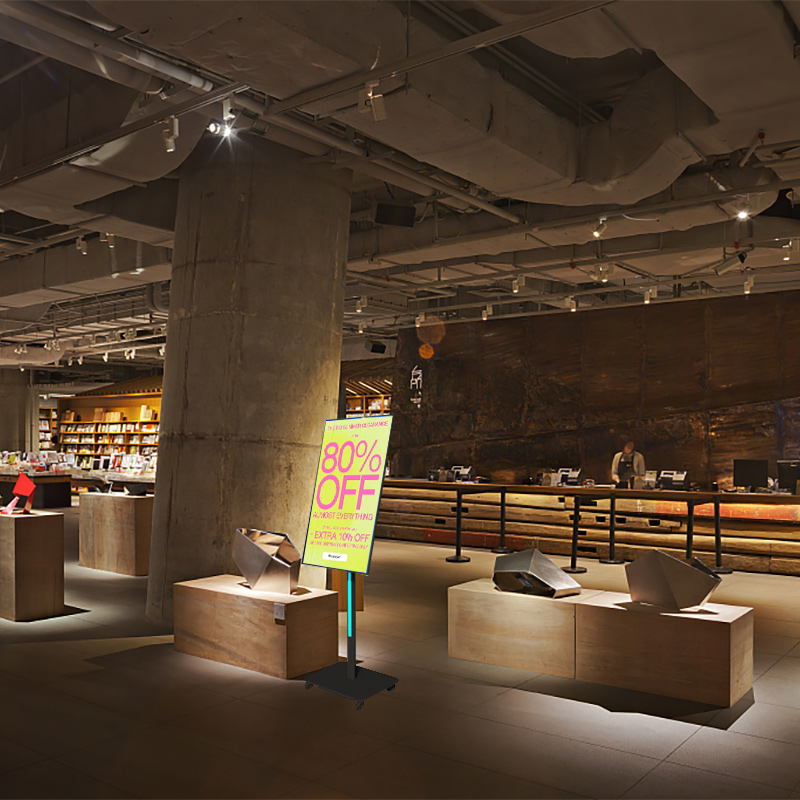

APPLICATION SCENARIO







































































32inch Floor Standing Display EKFAD32 is part of the Indoor Floor Standing Digital Signage range and supports commercial information, promotion and customer-facing communication. Select the final configuration for the actual site, content workflow and operating conditions. A successful EKFAD32 deployment starts with a clear review of the installation environment. The project team should document the available space, viewing direction, expected audience distance, ambient light, mounting surface, access route, power source, signal path, network availability and daily operating schedule. If the display will be used outdoors or near an exposed entrance, the buyer should also confirm the required environmental protection, thermal strategy and maintenance access with EKAA. These details help align the enclosure, brightness target, mounting method and control approach with the real application rather than relying on assumptions. Content planning is equally important. Prepare sample layouts at the intended resolution and check headline size, contrast, image quality, language coverage and the time needed for a viewer to understand each message. A consistent template makes promotions, menus, wayfinding and service information easier to update. The content workflow should define who creates material, who approves it, how often it changes and whether local playback, scheduled publishing or remote management is preferred. Any required touch, audio, camera, sensor or payment workflow should be identified before production so that interfaces and software responsibilities can be reviewed. Before shipment, agree on drawings, approved appearance, input sources, accessories, packaging, labeling and acceptance criteria. Site photos, dimensioned plans and example content allow EKAA to check integration points and identify questions early. Installation teams should retain ventilation and service clearances, protect cables, verify grounding and follow the supplied instructions. After commissioning, confirm startup, signal stability, content playback, network access and scheduled operation. A practical maintenance plan should cover cleaning, inspection, software access, spare-part strategy and the contact path for technical support. This project-based process provides a more dependable result while keeping every performance claim tied to the configuration confirmed for EKFAD32.
